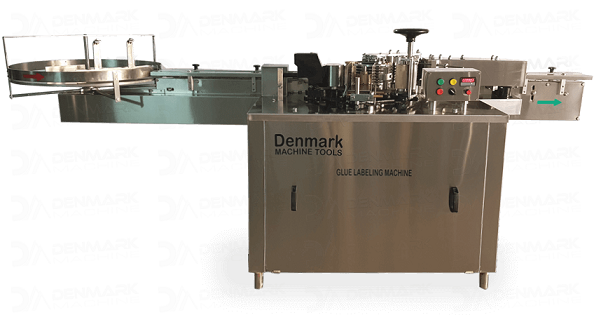

DHL – 150 Automatically Labels Paper type labels on round container of glass & Pet / Plastic with wrap around, partial and also flag type in the vertical position by using cold glue.
The round container is transferred on the moving conveyer from the in built UNSCRAMBLER and positioned accurately by Feed-worm at the labeling point. The rotating glue cylinder receives cold glue from the glue pot which transferred on the glue rubber roller. Finally even and thin film of glue is transferred to the gluing pad.
The round container at the feed worm pushes the Micro Switch, which results in the oscillation of the label box. The rotating gluing pad picks-up one label from the oscillating label box
The pick-up cylinder receives this label with the help of vacuum. The round container at the labeling point is now wrapped around with the glued label, finally the moving container passes through a rubber pressing belt which ensures neat and perfect fixing of label.
technical specification
| Model No | DHL-150 | |
|---|---|---|
| Output / Hours | 3000-9000 | |
| Construction | Machine Clading with SS 304 PVC Coated Sheet | |
| Electrical rating | 1HP for Machine main motor AND 0.5 HP for Vacuum pump | |
| Power Supply | 3 Phase / 440V | |
| Height of Conveyor | 860 mm to 910 mm | |
| Overall Dimensions | 3100mm (L) 1100mm (W) 1320mm (H) | |
| Input Specification | (A) Container Size : 16mm to 90mm Diameter | |
| (B) Label size : Length 40mm to 150mm (in special case up to 160mm) Width 16mm to 90mm | ||
| Change Parts | (A) Container Size : Feed Worm | |
| (B) Label size : Label Muster, Upper-Lower Plate, Label Pusher Plate | ||
sailent features
- S.S. Cladding or hard chrome plating of all exposed parts
- S.S. elegantly matt finished body
- Suitable for overlap and flag type labeling
- S.S. slat conveyer
- Suitable for glass, pet, HDPE bottle
- Minimum change over time.
- All standard electrical components and Motors
- Digital pulse counter
